Main Applications:

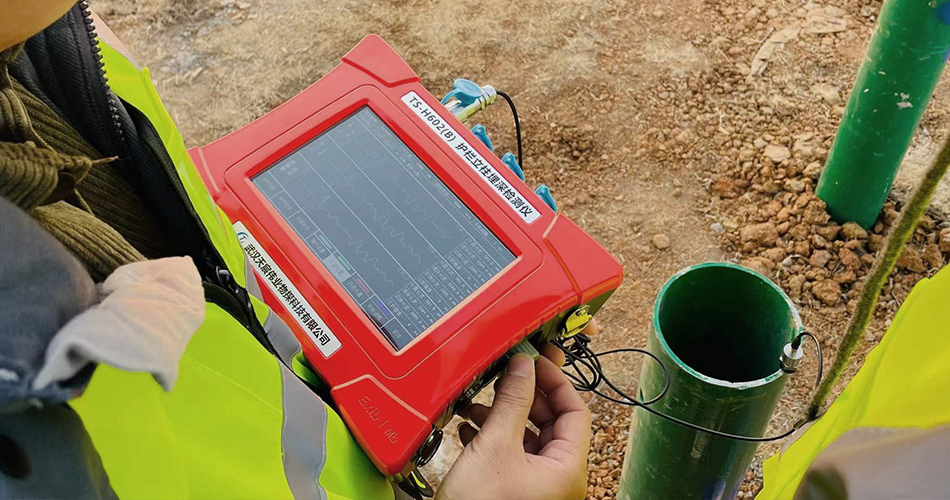

1. Highway Guardrail Systems: The detector is mainly used on highways to assess the length and burial depth of steel guardrail posts. This is crucial for ensuring the structural integrity and safety of the guardrails, which are designed to protect vehicles and passengers in the event of an accident.

2. Infrastructure Inspection and Maintenance: The device can be utilized by road maintenance crews and engineering teams to conduct regular inspections of guardrail posts. By accurately measuring the length and burial depth, maintenance teams can identify posts that may need repair or replacement, thereby preventing potential safety hazards.

3. Construction and Installation of Guardrails: During the construction phase of new highways or the upgrade of existing ones, the TS-H602(B) can be used to ensure that guardrail posts are installed correctly and meet the required standards for depth and stability.

4. Post-Installation Quality Control: After the installation of guardrail posts, the detector can be employed to perform quality control checks. It helps to confirm that the posts meet the necessary depth requirements and are securely anchored in the ground.

5. Emergency Response and Accident Analysis: In the event of a road accident involving guardrails, the TS-H602(B) can be used to quickly assess the condition of the impacted posts. This information can be vital for emergency responders and for subsequent accident investigations.

6. Research and Development: The device’s advanced features, such as its high-speed analog-to-digital conversion unit and its independently developed analysis software, make it a valuable tool for research institutions and companies involved in the development of new materials and technologies for highway safety infrastructure.

Features:

1. Highly Sensitive Detection Capabilities: The device is equipped with a 24-bit high-speed analog-to-digital conversion unit, which provides an ultra-strong weak signal detection ability and exceptional detection precision. This ensures that even the faintest signals from deeply buried guardrail posts can be accurately captured and analyzed.

2. User-Friendly Interface: The embedded operating system features an intuitive and easy-to-navigate interface. This user-centric design facilitates straightforward operation and assists with the interpretation of guardrail post length and burial depth, enhancing the overall user experience.

3. Portability and Flexibility: Powered by a DC12V lithium battery, the device offers low power consumption, allowing for continuous operation up to 10 hours on a single charge. Its lightweight design and IP67 rated molded housing make it portable, dustproof, and waterproof, ensuring reliable performance in various environmental conditions.

4. Advanced Analysis Software: The proprietary analysis software, protected by software copyright (2018SR359684), provides advanced features such as digital filtering (high pass, low pass, band pass), spectrum analysis, phase analysis, reflection extraction, and signal correlation. These tools enable in-depth data analysis and contribute to more accurate and detailed results.

5. Efficient Data Management: The device comes with a built-in 32G memory and uses the FAT32 data storage format, simplifying data management. The USB2.0 data interface allows for easy data transfer, enabling direct copying and pasting of measured data files under the general Windows operating system, streamlining the workflow and enhancing efficiency.

6. Rugged and Durable Construction: The device’s construction includes a robust and aesthetically pleasing exterior that is designed to withstand the demands of field use. The combination of high-quality materials and thoughtful design ensures that the device remains functional and operational even in challenging conditions.

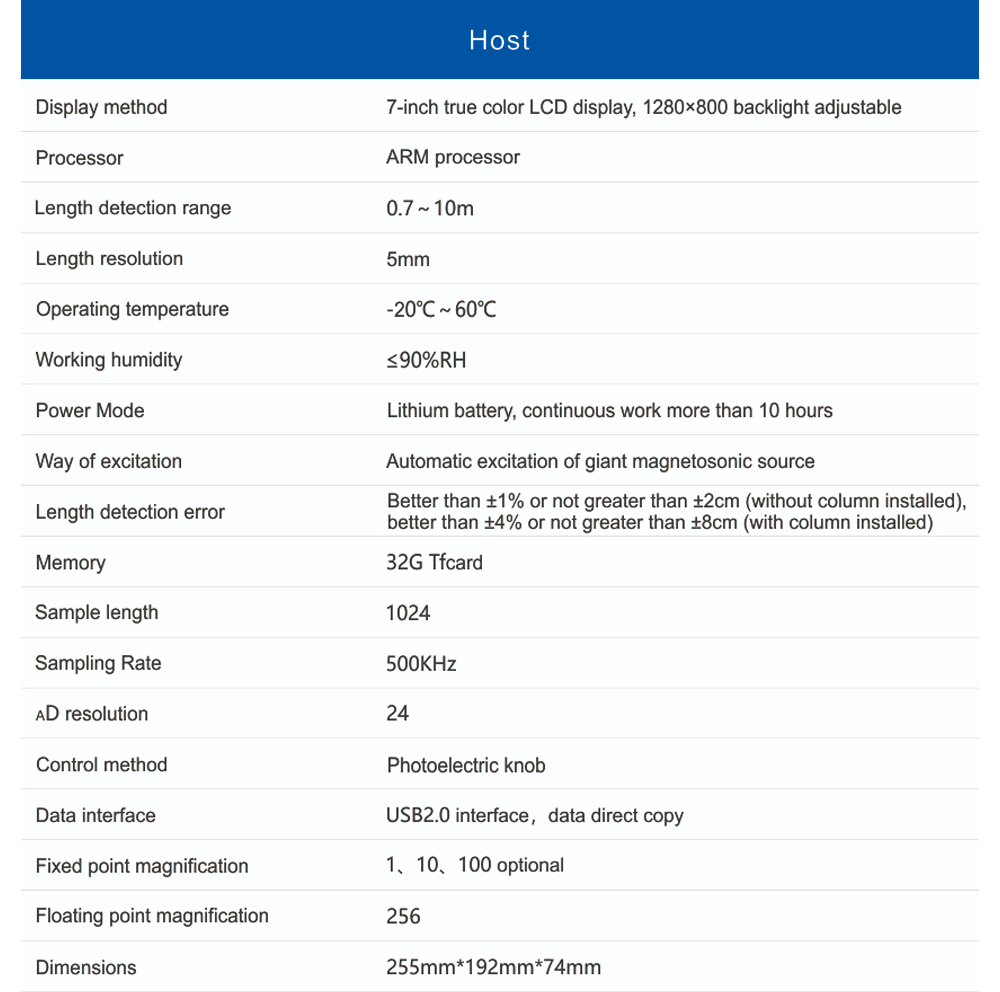

7. Precision and Reliability: The TS-H602(B) offers a length detection range of 0.7 to 10 meters with a resolution of 5mm, ensuring that the measurements taken are highly precise. The length detection error is optimized to be better than ±1% or not greater than ±2cm for uninstalled posts and better than ±4% or not greater than ±8cm for installed posts, highlighting the device’s reliability and accuracy.

Technical Introduction:

1. The instrument is engineered with a 24-bit high-speed analog-to-digital conversion (ADC) module, ensuring exceptional sensitivity in weak signal detection and unparalleled precision in measurement accuracy.

2. Powered by a DC 12V lithium battery, the device maintains low energy consumption, enabling up to 10 hours of continuous operation on a single charge.

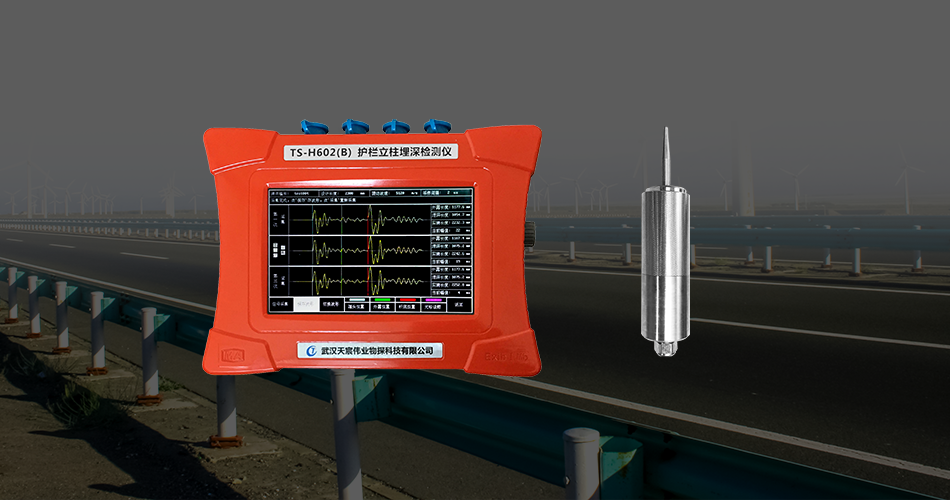

3. Incorporating a giant magnetostrictive acoustic source, the instrument offers flexibility and convenience in field applications.

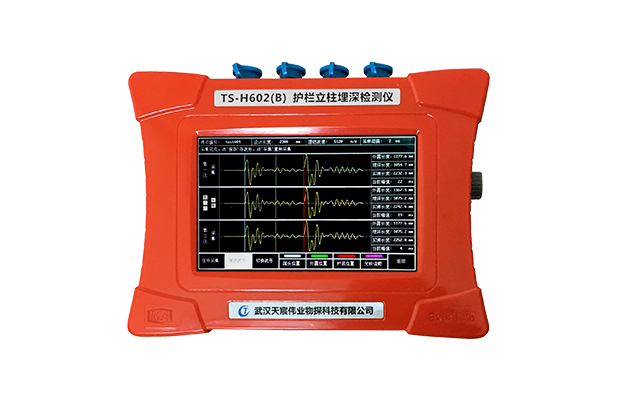

4. The device boasts a proprietary embedded operating system (software copyright: 2018SR359684) and an elegantly designed English user interface, which simplifies operation and aids in the interpretation of guardrail post length and burial depth.

5. Equipped with a USB 2.0 data interface, the instrument facilitates straightforward and convenient data transfer. With an integrated 32GB memory and utilizing the FAT32 file system, it allows for direct copying and pasting of measured data files via the USB 2.0 interface under standard Windows operating systems.

6. The instrument’s housing is crafted with an IP67-rated design, ensuring waterproof and dustproof properties, along with an aesthetically pleasing and robust construction.

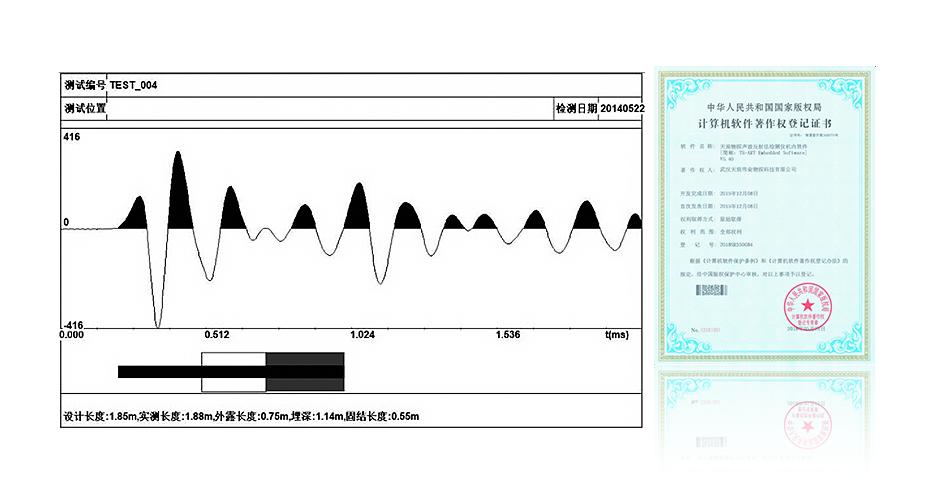

7. The independently developed analysis software integrates advanced features such as digital filtering (high pass, low pass, and band pass), spectral analysis, phase analysis, reflection extraction, and signal correlation, enhancing the device’s analytical capabilities.
