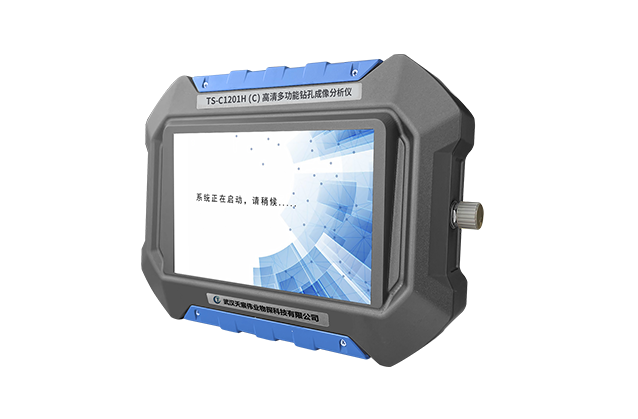

High-Definition Multifunctional Borehole Imaging Analyzer TS-C1201H(C)

HD Borehole Imaging System Optical Well Televiewer

Real time Imaging, videoing, trajectory inspection 3 in 1

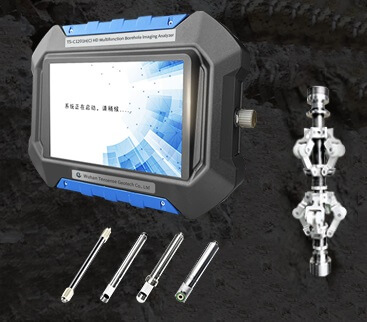

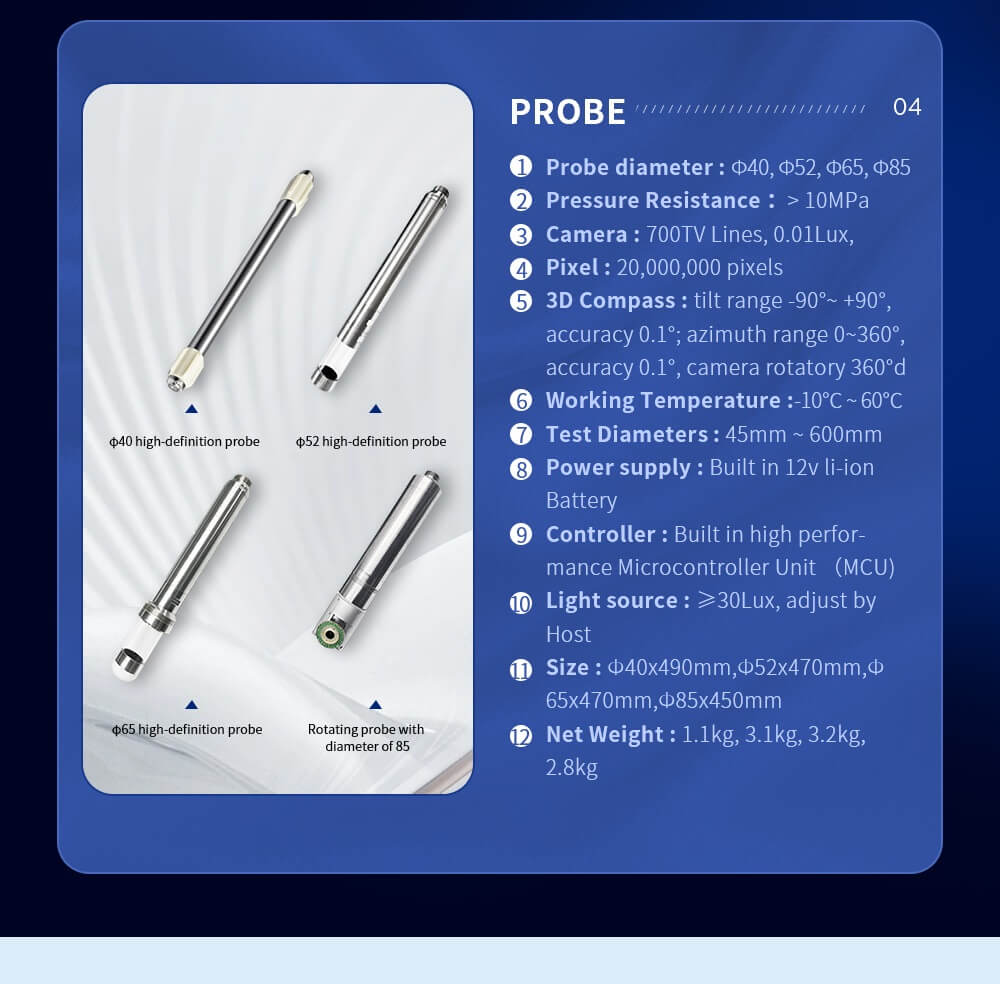

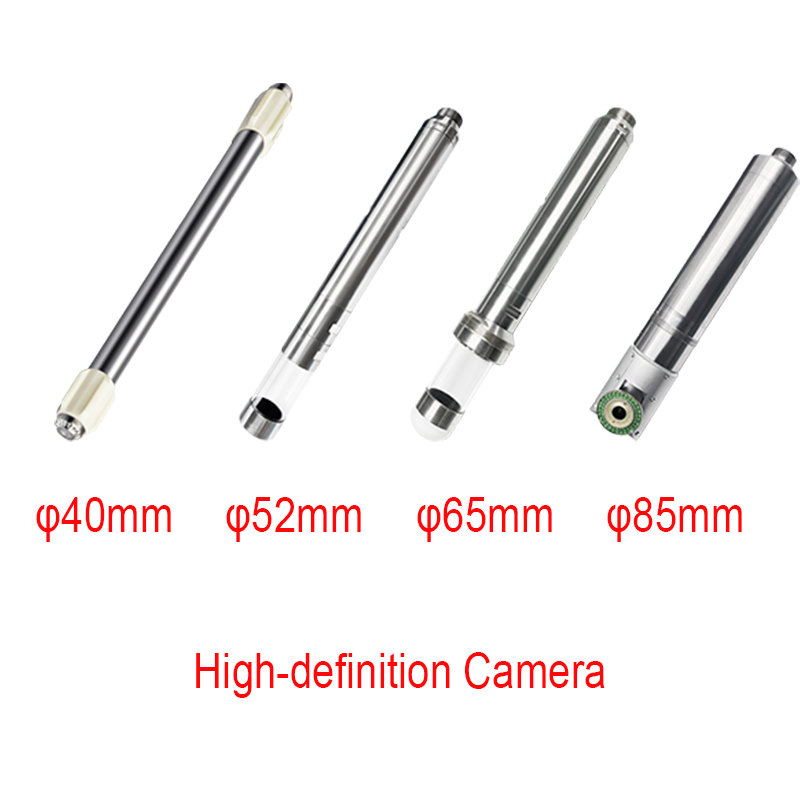

4 probes optional, match different boreholes

HD Borehole Imaging System Optical Well Televiewer

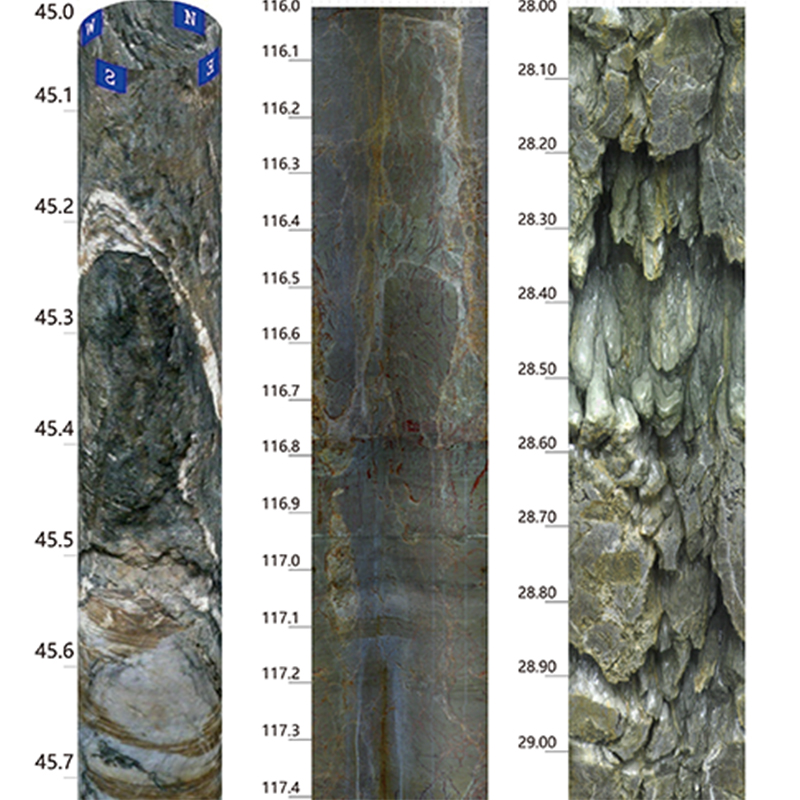

Analyzer Software can display & output flat pattern, 3D histogram chart, 3D drilling spatial trajectory image, sides view image

Analyzer Software can display & output flat pattern, 3D histogram chart, 3D drilling spatial trajectory image, sides view image

HD Borehole Imaging System Optical Well Televiewer
HD Borehole Imaging System Optical Well Televiewer

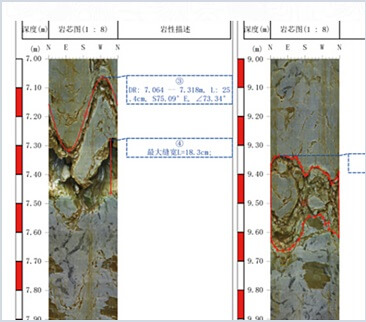

On the flat pattern we can manually mark rock description, automatically calculate crack orientation, tilt, width, width accuracy can be 0.1mm, tilt accuracy can be 0.1°

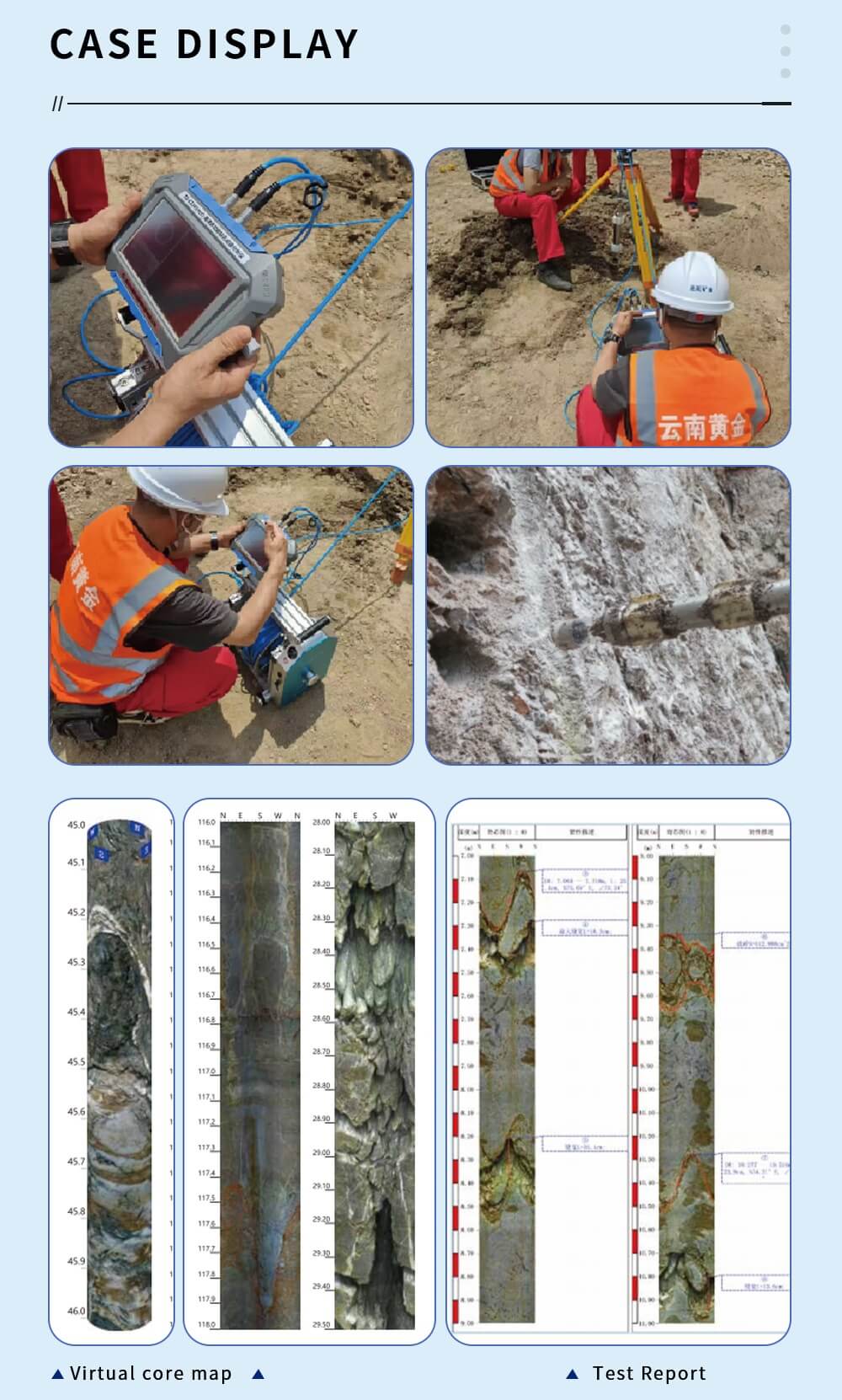

Application

  • Borehole Imaging and Documentation: The device is primarily used for full-hole wall imaging and recording within drill holes. It captures high-definition images and videos of the borehole walls, allowing for detailed documentation and analysis of subsurface geological formations.
  • Trajectory Measurement: It measures the spatial trajectory of boreholes, which is crucial for understanding the path of drilling and for accurate positioning of the drilling rig, especially in complex geological environments or for directional drilling.
  • Fault and Fracture Analysis: The analyzer observes and documents the occurrence and development of faults and fractures. This is essential for assessing the stability of rock masses and for identifying potential risks associated with geological structures.
  • Hydrogeological Investigations: The equipment is capable of detecting water-bearing faults, grikes, caves, aquifer outlets, and water-flowing fissure zones. This is vital for hydrogeological studies and for the management of groundwater resources.
  • Rock Stratum Analysis: It allows for the observation and quantitative analysis of the strike, thickness, inclination, and dip angle of rock strata and other ore bodies. This information is crucial for mining operations and for understanding the geological structure of an area.
  • Measurement of Geological Structures: The analyzer can measure the thickness, width, strike, inclination, and dip angle of strata or various geological structures from the imaging plan, providing valuable data for geological mapping and structural analysis.
  • Differentiation of Geological Bodies: The device can distinguish between different geological structures such as ore bodies, rock masses, dirt bands, and soil layers, which is essential for accurate geological interpretation and resource estimation.
  • Applicability to Various Borehole Types: The TS-C1201H(C) is designed to be used with different types of boreholes, including horizontal, vertical, and inclined boreholes, making it a versatile tool for a wide range of drilling projects.

Specification

  • Integrated Real-time Imaging, Recording, and Trajectory Detection: The system integrates HD borehole imaging, video recording, and trajectory detection into one unit, offering comprehensive drilling environment analysis.
  • High-performance Integrated Motherboard: The device’s high-performance integrated motherboard ensures continuous HD imaging throughout the borehole, delivering vivid colors and sharp images at up to 4 meters per minute without lag, blackouts, or data loss.
  • Advanced Analysis Software: The software provides synchronized recording, 2D expansion diagrams, 3D histograms, and spatial trajectory visualization, generating detailed inspection reports with one click for streamlined data analysis.
  • 1080p High-definition Imaging: 1080p HD imaging ensures clear, detailed images, essential for accurate geological interpretation.
  • Rechargeable and Portable Electric Cable Rack: Witha rechargeable, portable electric winch for convenient field use, enhancing mobility and flexibility during drilling operations.
  • High Integration and Multifunctionality: Integrates system control, image collection, display, and storage in a compact unit. Its multifunctionality supports borehole imaging, video recording, and trajectory measurement, making it versatile for various applications.
  • Full Automation and User-friendly Operation: The automated electric winchoffers adjustable release speed for smooth descent and user-friendly operation, enabling quick mastery. It also functions as an external USB drive for direct data transfer.
  • High Intelligence and Rapid Image Processing: With a dual-core processor handling 25 fps, the device simultaneously acquires image, depth, and location data, enabling real-time panoramic image acquisition and seamless stitching.
  • High Reliability and Durability: The integrated& sealed design ensures stability, waterproofing, and dustproofing for reliable performance in various conditions.
  • Low Power Consumption: The analyzer operates on DC 5.5V to 12V, powered by a built-in or external 12V batter, ensuring at least 10 hours of continuous operation.
  • Flexible Display Options: The software provides diverse display and export options, such as 2D flat patternand 360-degree rotating 3D histograms. It also offers high-precision zoom views and displays borehole 3D trajectory images and side views.
  • Direct Rock Core Description: The system allows direct rock core description on the flat pattern, automatically calculating and extracting fracture inclination, tilt angle, and width with precision..
  • Image Format Conversion: Captured images can be converted to JPG, BMP, or PDF formats for easy sharing and integration with other systems.
  • Strong Probe Bearing Capacity: The probe, housed in stainless steel and tempered glass, withstands pressures up to 10MPa for use in deep drilling environments.
  •

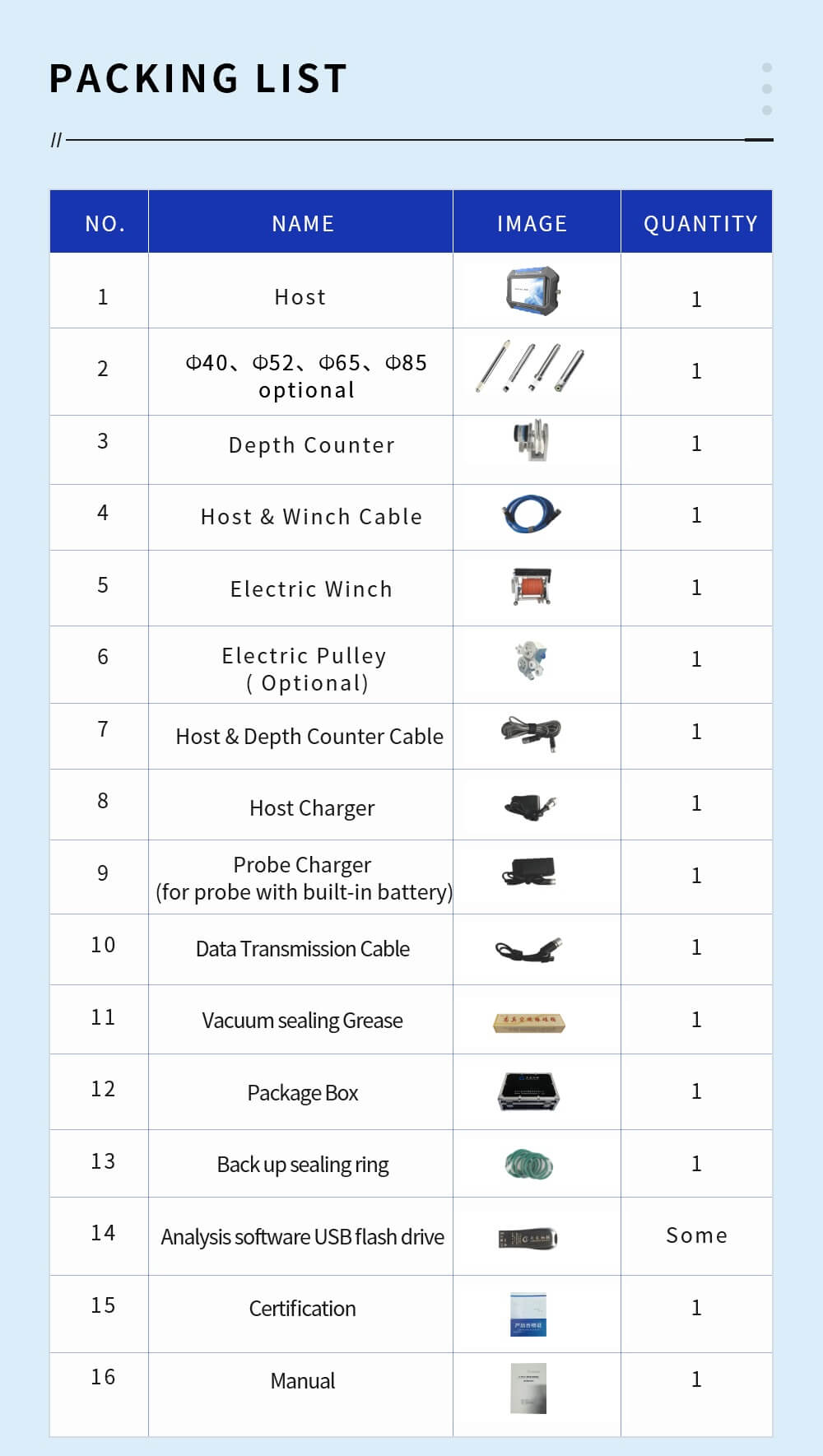

Packing List
