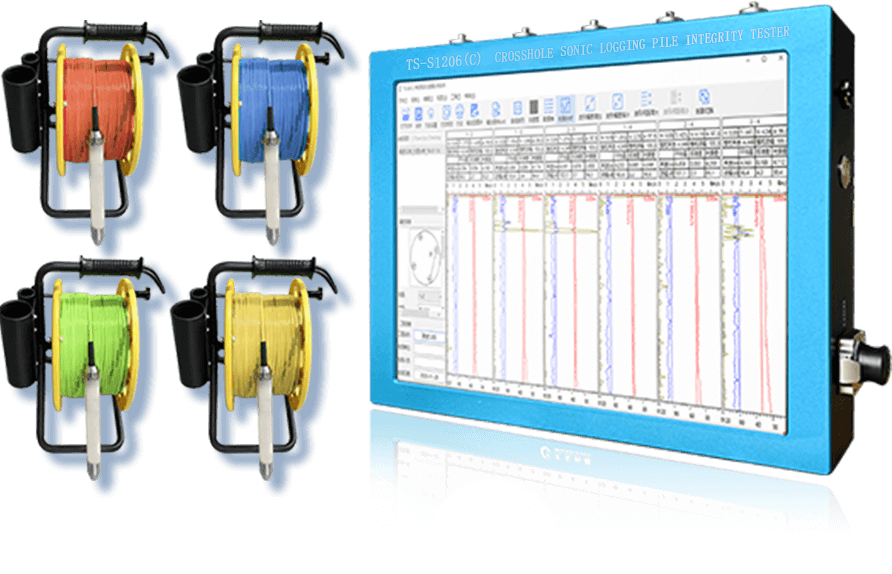

Multi-Channel Crosshole Sonic Logging Pile Integrity Tester

TS-C1206 (C)

Crosshole Sonic Logging Pile Integrity Tester

The TS-S1206(B) Multi-channel Ultrasonic Pile Integrity Tester is a high-grade, military-spec measurement device designed for the assessment of foundation pile integrity utilizing the acoustic wave transmission technique.

Continuous Lifting
___

Free Profiles Combination
___

Intutive Data Display
__

Stable System
__

military-grade quality

Consistently deliver exceptional performance across various geological conditions and working environments.

Free profiles combination

Intelligent interpretation ensures more accurate first arrival time and amplitude detection. Profile testing waveform gain and delay are adjustable via multi-touch controls.

intuitive data display

Operation process is designed with a professional, guided workflow

Application

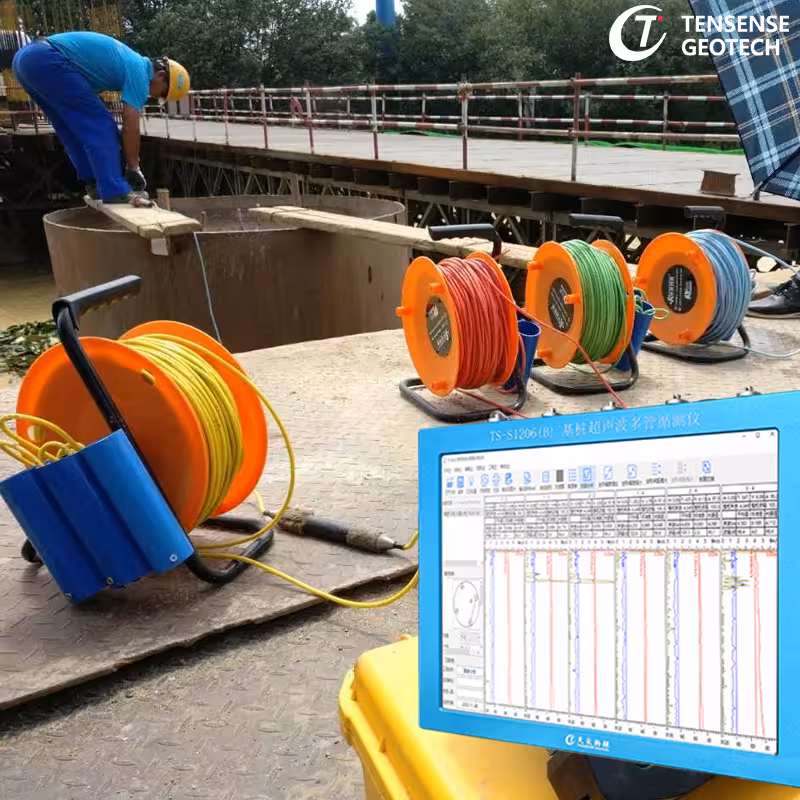

Ultrasonic Transmission Integrity Analysis for Foundation Piles: Utilizes ultrasonic wave propagation to assess the structural integrity of foundation piles.
Depth Profiling of Concrete Fractures: Accurately determines the depth of fractures within concrete structures.
Ultrasonic-Rebound Hybrid Method for Concrete Strength Assessment: Employs a combination of ultrasonic and rebound techniques to evaluate the strength of concrete.
Detection of Loose Rock Zones in Tunnels: Identifies areas of loose rock within tunnel structures for safety assessment.
Ultrasonic Transmission Integrity Analysis for Foundation Piles: Utilizes ultrasonic wave propagation to assess the structural integrity of foundation piles.
Elastodynamic Parameter Testing for Nonmetallic Materials: Conducts comprehensive testing of the dynamic mechanical properties of nonmetallic materials.

Features

Automated Continuous Lifting and Multi-Channel Cyclic Testing: Meets the need for flexible profile combinations and adapts to various inspection scenarios.
Advanced Intelligent Interpretation: Enhances the precision of head wave and sonic amplitude analysis for more reliable results.
Adjustable Wave Gain and Delayed Multi-touch Screen: Optimizes the profile testing experience with a responsive and customizable interface.
Streamlined Professional Guidance: Offers a user-friendly operation procedure that simplifies the inspection process, increasing efficiency and ease of use.
Ergonomic Ultra-thin Design: Features a unique design that reduces strain during extended use, enhancing user comfort.
Low-Power Dissipation Technology: Integrated with a high-capacity rechargeable lithium battery for extended standby and operational times.
Ruggedized Design: Incorporates waterproof and seismic-resistant features for reliable performance in challenging environments.
Integrated Multifunctional Interface: Facilitates seamless software updates, data exports, and device charging for enhanced convenience.
12.1-Inch True Color High-Brightness Touch Screen: Offers adjustable brightness levels and clear data visualization, suitable for all work environments.

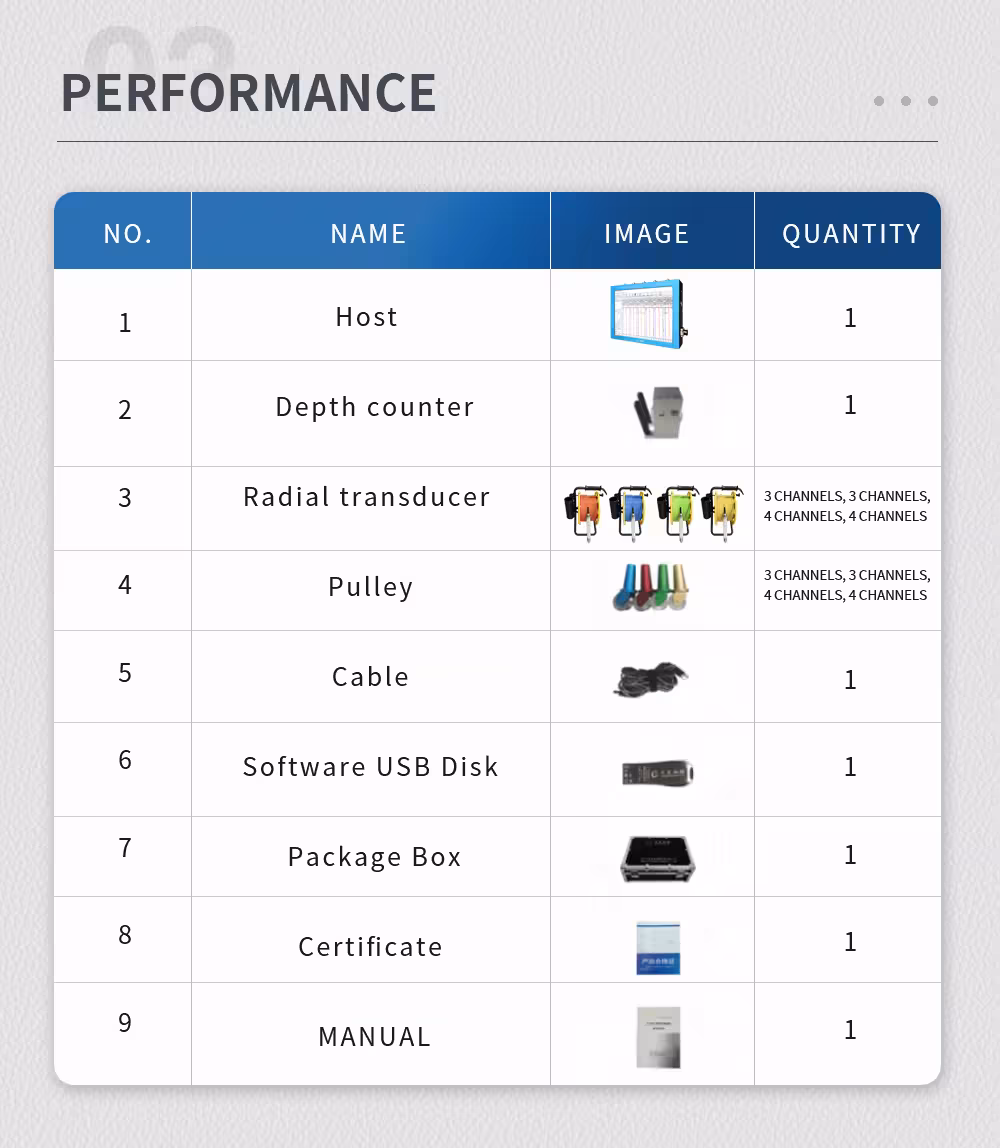

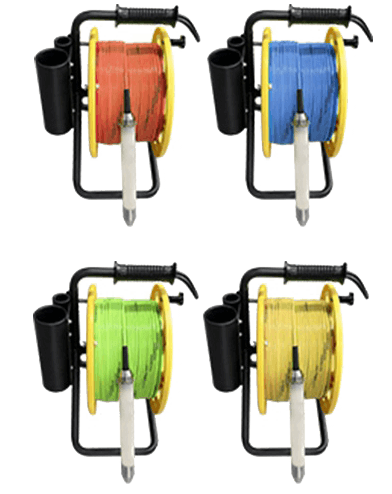

Specification

Screen : 12.1-Inch true color , 1280x800 lightness adjustable
Emit voltage : 500V/1000V optional
Dynamic range : ≥100dB
Acoustic time accurate : ≤0.1%
Counter mode : automatic
Data transfer : USB 2.0
Sampling interval : 0.05μs-65535μs
Sampling points : 512/1024/2048
Storage : 32G TF flash card
Channel number : Four independent transmit/receive channels.
Profiles number : max 6 profiles in 1 process
Acoustic wave amplitude accurate : ≤3%
System noise : <50μv
Bandwidth : 300Hz~300KHz
Working humidity : ≤90%RH
Working temperature : -20℃~+60%C
Size : 375mmx300mmx90mm
Weight : 3.1kg
