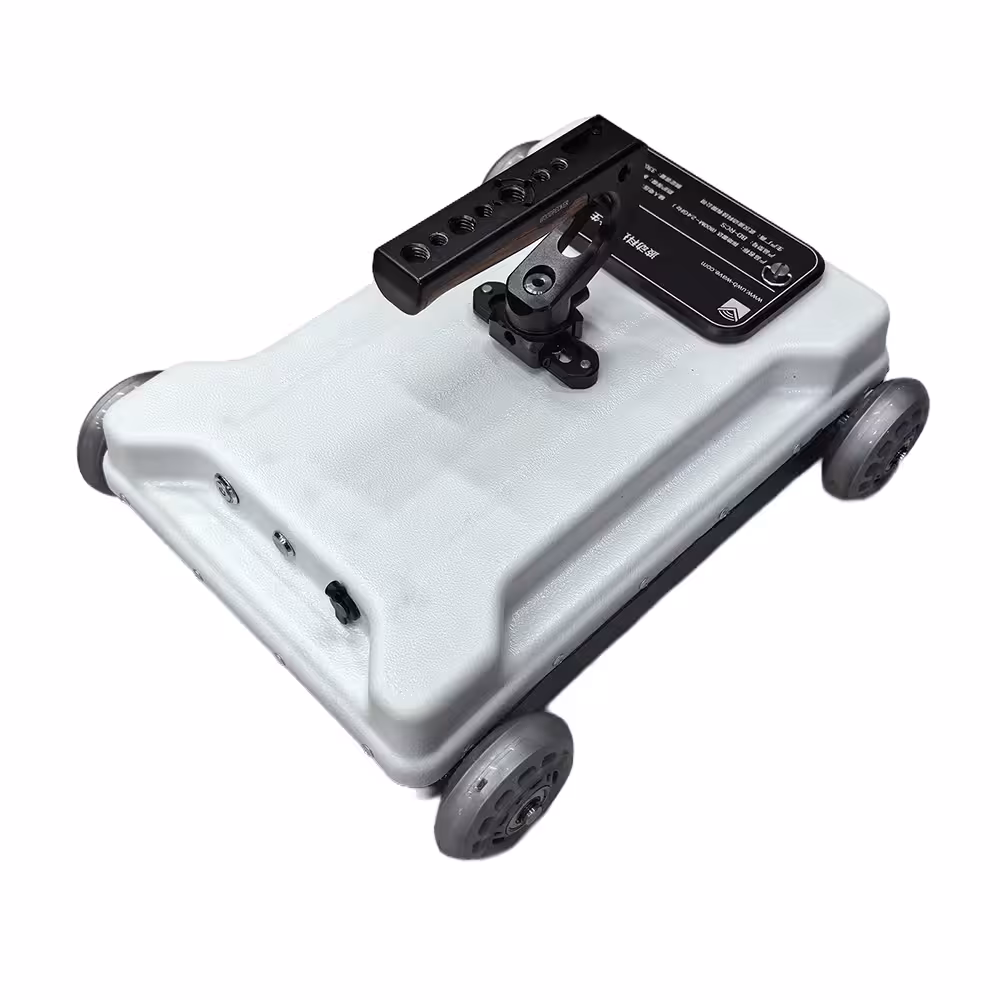

TS-WGR1201(B)-900 Wireless Ground Penetrating Radar (GPR) – 900 MHz Shielded Antenna

Tensense TS-WGR1201(B)-900 is a high-resolution wireless Ground Penetrating Radar (GPR) designed for precision subsurface inspection at shallow to medium depths. Operating at 900 MHz, it delivers detailed imaging for 0.5–1.5 m penetration, making it ideal for tunnel lining assessment, pavement evaluation, rebar mapping, and bridge-deck defect detection.

High-resolution target detection for metallic and non-metallic materials.
Optimized for engineering structure assessment and urban infrastructure surveys.
Supports multi-frequency configurations for combined shallow/high-resolution and deeper/low-frequency scans.
Extended battery operation (8+ hours) for continuous fieldwork.
Rugged IP66 protection for outdoor and construction environments.
Modular software with options for pavement auto-tracking, bridge structure analysis, and 3D utility mapping.

Ground Penetrating Radar (GPR) is widely applied in geological hazard assessment, geotechnical engineering investigations and design, as well as in various civil infrastructure inspection projects. It is capable of detecting and identifying both metallic and non-metallic subsurface targets within a certain depth. The main applications include:

Geological Hazard Assessment:
GPR is used to detect subsurface anomalies such as voids, cavities, and fractured zones that may pose potential geological risks.

Geotechnical Engineering Investigation:
In engineering site investigations, GPR helps identify underground anomalies such as karst features, collapse zones, and fractured belts, providing critical data for design and risk control.

Municipal Utility Mapping:
GPR is utilized in urban construction to locate and map underground metallic and non-metallic pipelines, reducing the risk of accidental damage during excavation.

Road and Bridge Surveys:
It supports the detection of unfavorable geological conditions during the site selection and construction of roads and bridges, contributing to safer and more reliable designs.

Tunnel Inspection and Forecasting:
GPR is used for advanced geological prediction in tunneling and for inspecting the quality and integrity of tunnel structures during and after construction.

Recommend configuration of different purpose:

Antenna Type	Frequency	Depth	Recommended Applications
Shielded Antenna	1.5 GHz	0.2 – 0.8 m	Concrete inspection, rebar mapping, bridge-deck defect detection
	900 MHz	0.5 – 1.5 m	Tunnel lining assessment, pavement evaluation, rebar scanning, bridge-deck defect detection
	600 MHz	0 – 3.0 m	Engineering structure inspection, tunnel lining evaluation, retaining-wall defect detection
	400 MHz	0 – 5 m	Shallow geotechnical investigation, tunnel lining inspection, retaining-wall defect detection
	200 MHz	0 – 10 m	Shallow subsurface defect mapping, utility locating, leak detection
Unshielded Antenna	100 MHz	0 – 20 m	Shallow engineering site investigation, advance geological forecasting, karst/cavity/fracture zone detection
	50 MHz	0 – 30 m	Deep shallow-subsurface engineering and geological investigations
Dual-Frequency Shielded Antenna	Any two frequencies 200 MHz – 2 GHz (user-selectable pair)	0.1 – 8.0 m	Municipal utility mapping, geological defect detection, lining inspection
Full-Polarimetric Shielded Array	Up to 8 channels, 200 MHz – 2 GHz (user-selectable combination)	0.1 – 8.0 m	High-resolution utility mapping, advanced geological defect characterization, comprehensive lining assessment

Compact and Integrated Design
The system features an industry-leading integration of control unit and antenna, resulting in a compact, lightweight, and low-power design—ideal for field deployment and mobile operations.

Wireless and Real-Time Operation
With wireless communication between the main unit and the computer, users benefit from greater flexibility and ease of operation. The system supports real-time data acquisition and display, enabling immediate interpretation and decision-making on site.

User-Friendly Software Interface
The software offers a clean, intuitive interface that is easy to operate and quick to learn, reducing training time and improving operational efficiency.

Flexible Frequency Options and Broad Application Range
A variety of antenna frequency configurations are available to suit different application needs—from shallow, high-resolution scans to deeper, low-frequency surveys—making the system adaptable across diverse geophysical and infrastructure scenarios.

Accurate Data Analysis and Interpretation
Equipped with easy-to-use analysis software, the system ensures accurate data interpretation and dependable subsurface imaging results.

High Detection Precision and Target Localization
Advanced signal processing enables high-resolution detection and accurate positioning of subsurface targets, ensuring reliable performance in complex environments.

Extended Battery Life
An internal high-capacity battery supports long-duration operation, reducing downtime and enhancing productivity in the field.

Ergonomic and Durable Construction
Designed with ergonomics in mind, the system is simple to operate, rugged in construction, and highly durable—perfectly suited for demanding outdoor environments and mobile survey conditions.

Hardware	Items	Specification
	Antenna Frequency	900 MHz
	Sampling Frequency	Adjustable from 0.1–100 GHz
	Time Window	1 ns – 20000 ns, continuous adjustable
	Points per Scan	32 – 32767 points/scan, Ajustable
	Scanning Speed	6-480 scans/sec
	A/D Conversion Accuracy	18-bit
	Maximum Transmission Frequency	400 kHz
	Continuous Working Time	≥8 hours
	Power Consumption	≤18 W
	Signal-to-Noise Ratio	> 160 dB
	Acquisition Speed	>60 km/h at 5 cm horizontal sampling interval (road mode)
	Minimum Sampling Interval	<10 ps
	Working Modes	Point-based, distance-based, continuous, GPS-based
	Display Modes	Color-scaled map,Waveform stack,Grayscale map
	Operating Temperature	-30°C to +70°C
	Operating Voltage	10–15V DC
	Ingress Protection	IP66
	Wireless Distance	Up to 50 m
	Wired Communication	Ethernet, 100 Mbps
	Weight	<5 kg

Software	System	Sampling Parameter	Number of Samples
			Sampling Rate
			Pulse Repetition Frequency (PRF)
			Traces per Acquisition
			Averaging Factor
			Start Position
			Scan Start
			Time-Zero Position
			Center Frequency
		Distance Measure Tool Parameters	Measurement Diameter
			Distance Correction
			Wheel Spacing
		Measuring Parameter	Stacking/ Stack Count
			Refresh Traces
			Survey Mode	Continuous Time, Wheel, Point
			Display Scale
			Step Size
	Filter	Filter Setting	Dewow Filter	True / False
			Band-Pass Filter	True / False
			Low-Cut Frequency
			High-Cut Frequency
	Display	Display Setting	Multi-Channel Layout	Horizontal / Vertical
			Time-Zero Offset
			Show Markers	True / False
			Show Title	True / False
			Show Horizontal Grid	True / False
			Show Vertical Grid	True / False
			Trace Start Index
			Trace End Index
			Display Points
			Display Start
			Color Scheme (4 choices)
			Relative Dielectric Constant
			Vertical Pixels
			Horizontal Pixels
	Gain	Gain	SEC Gain	True / False
			SEC Initial Value	Adjustable
			SEC Attenuation	Adjustable
			SEC Max Value	Adjustable
		Constant Gain	Constant SEC Gain	True / False
		Constant Gain	Display Gain	True / False
		Coordinate Setting	Horizontal Axis	Trace Number / Distance
		Coordinate Setting	Vertical Axis	Time / Depth / Sample Point
	Toolbar	File	Open File
		File	Save File
		Acquisition	Device IP
			Connect
			Disconnect
			Start Acquisition
			Stop Acquisition
		View	Image + Wiggle
			Image Only
			Wiggle-Trace Stack
			Wiggle Plot
			3-D View
			Increase Amplitude
			Decrease Amplitude
			Stretch Horizontally
			Compress Horizontally
			Stretch Vertically
			Compress Vertically
			Full Screen
		Processing	Delete Trace
			Auto Gain
Segmented Gain
Exponential Gain
IIR Low-Pass
IIR Band-Pass
FIR Band-Pass
FIR Low-Pass
Report		Generate Report

No.	Item	Qty	Unit	Description
1	Integrated GPR Antenna	1	pc	900 MHz Shield Antenna
2	Real-time Acquisition & Analysis Software	1	set	No hardware lock
3	Dedicated Rechargeable Battery	1	set	Supports continuous operation for over 8 hours
4	Dedicated Charger	1	set	Supports both fast and slow charging
5	User Manual	1	pc	—
6	Professional Data Processing Software	1	set	—
7	Laptop / Tablet	1	pc	Optional
8	Distance Measure Tool	1	set	Optional
9	Professional Trolley	1	unit	Optional
